Products Description
Concrete welded Reinforcing mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square grid pattern and is produced in flat sheets.The fabric is used to provide tensile strength and crack control to structural concrete elements. Concrete reinforcing mesh prices can vary widely depending on factors such as material quality, size, manufacturer, and geographic location.
Concrete welded Reinforcing mesh is a convenient and cost effective alternative to conventional bar reinforcement for the following reasons :
The mesh is generally specified and manufactured according to standard references making for easy site identification, quality control and management.
The mesh is manufactured in sheets or rolls resulting in a quick and simple site installation process.
Although generally used in surface beds (concrete floor slabs on fill) and concrete roads, the mesh can also be used in suspended floor slabs, concrete walls, culverts/drains and composite brick / concrete retaining walls.
Factors Influencing Concrete Reinforcing Mesh Prices
Materials: Common materials include galvanized steel and black wire (uncoated)
Size and Thickness: Larger and thicker grids are usually more expensive. Common sizes include 4x8 feet, 5x10 feet, and custom sizes.
Wire gauge: Thicker wires (lower specification numbers) typically result in higher costs.
Quantity: Bulk purchases can usually lower the unit price. Bulk ordering our concrete steel mesh can result in more favorable prices.
Location: Prices may vary depending on regional market conditions and transportation costs. Our factory is located in China and has a high cost performance ratio. We reduce costs from the source and provide customers with concrete steel mesh at factory prices.
Specifications
| Type | Description | Common Sizes | Usage | Advantages |
| Square Mesh | Square openings formed by intersecting wires at right angles | 4x4 in, 6x6 in | Slabs, walls, pavements | Uniform strength, easy to handle |
| Rectangular Mesh | Rectangular openings for directional strength | 4x6 in, 6x8 in | Beams, columns | Targeted reinforcement, structural needs |
| Sheet Mesh | Pre-cut sheets of welded wire mesh | 4x8 ft, 5x10 ft | Driveways, patios | Convenient, reduces waste |

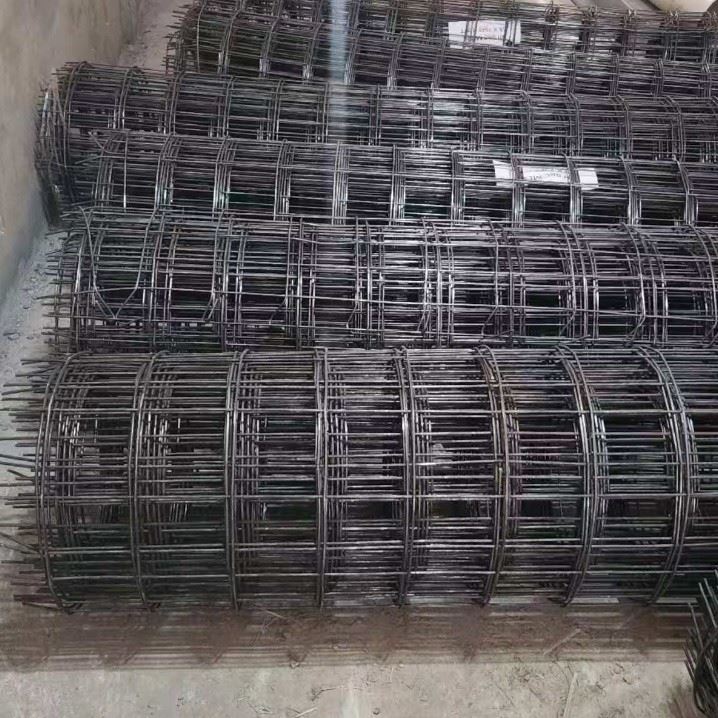

| Roll Mesh | Continuous rolls of welded wire mesh | 3-8 ft width, variable lengths | Roads, runways, large slabs | Minimizes joints, easy to lay |
| Galvanized Mesh | Coated with zinc to prevent rust and corrosion | Varies (e.g., 4x8 ft, 6x6 in) | Outdoor applications | Enhanced durability, rust-resistant |
| Stainless Steel Mesh | Made from stainless steel for superior strength | Varies (e.g., 4x8 ft, 6x6 in) | High-performance, corrosive environments | Highly resistant to corrosion, durable |
| Plastic-Coated Mesh | Welded wire mesh with a plastic coating | Varies (e.g., 4x8 ft, 6x6 in) | Moisture/chemical protection environments | Corrosion-resistant, extra protection |
| High Tensile Mesh | Made from high tensile steel wires | Varies (e.g., 4x8 ft, 6x6 in) | Structural applications | Stronger, better performance under stress |
| Expanded Metal Mesh | Cut and stretched sheet of metal forming diamond-shaped openings | Varies | Reinforcement, fencing, lath for plastering | Strong, durable, excellent bonding |

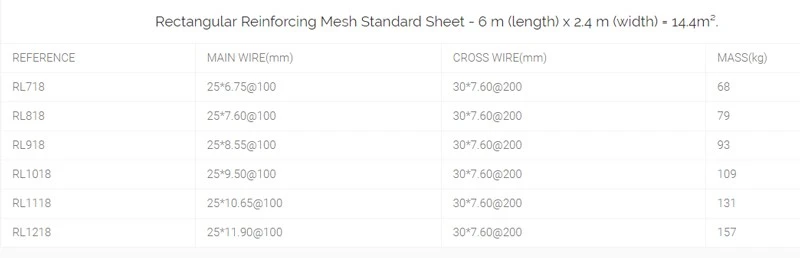

Rectangular Reinforcing Mesh Standard Sheet

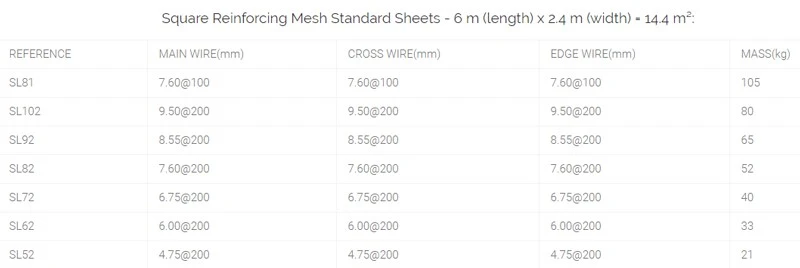

Square Reinforcing Mesh Standard Sheets
Note: Special size and specifications can be made according to customers requires.
Features
To save more than 33% of steel, reducing costs 10% -30%;
Increase the speed of construction can shorten the duration of about 80%;
To improve the quality of engineering structures, and concrete bonding anchoring reliable, smooth reinforcement bond strength equal to three times more, and the overall good, deviation is small, anti - cracking performance above 75%.
application
Concrete steel wire mesh has multiple uses, mainly including the following aspects:

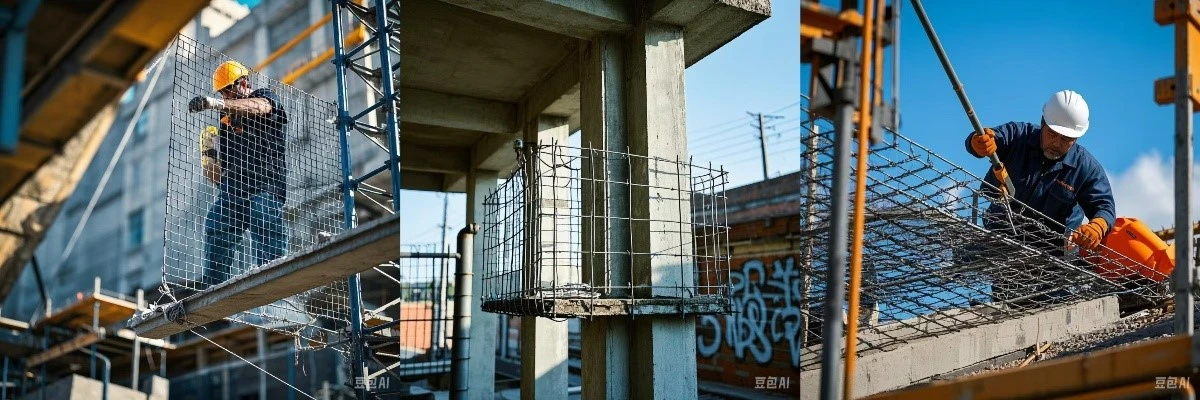

Building structure reinforcement
seismic strengthening
Crack prevention and resistance
Control the development of cracks
Wall insulation and decoration
Decorative base reinforcement
Concrete protection
Corrosion protection
Fire protection
Why tianjin huirun
Our company cooperates with major steel mills and has advanced production lines for sheet and pipe materials, complete testing equipment, and a strict quality assurance system.
We specializes in various kinds of steel concerned building materials. Such as Galvanized round pipe, square/rectangular/Irregular pipe, Scaffold pipe, various steel coils/stripe/plate, PC wire, PC strands, rebar, photovoltaic bracket, Angle steel, U/H/C-shaped steel and so on.
Especially our patented products-Rare Earth Weather & Corrosion Resistant Steel, it is a green, environmentally friendly, and corrosion-resistant new type of steel that can replace traditional galvanizing and rust prevention processes.
