Product Features:
Features: Inclination angle of support 0°-60 °.
Design standard: GB, American Standard, European standard, Japanese standard, etc.
Wind load: according to...
Photovoltaic Bracket
Your Professional Photovoltaic Bracket Supplier！
Tianjin Huirun Steel Development Co. Ltd. (HSDC) - is the only leading enterprise in China with a national level expert research and development team to produce high-quality steel, We specializes in various kinds of steel concerned building materials. Such as Galvanized round pipe, square/rectangular/Irregular pipe, Scaffold pipe, various steel coils/stripe/plate, PC wire, PC strands, rebar, photovoltaic bracket, Angle steel, U/H/C-shaped steel and so on.
-
![Fixed All Ground Solar Panel Mount]()
-

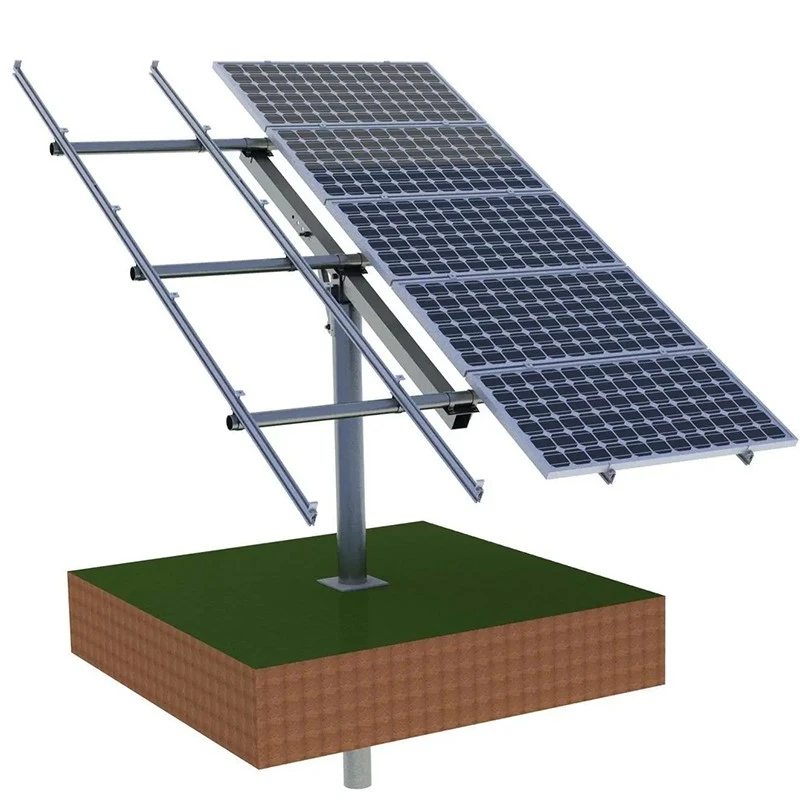

![Photovoltaic Manual Adjustable Bracket]()
Photovoltaic Manual Adjustable BracketDesign standard: GBread more
Wind load: according to design
Snow load: based on design conditions
Materials: Carbon steel hot-dip galvanized, zinc aluminum magnesium,
aluminum alloy,... -
![Flat Single Axis Solar Tracker]()
Flat Single Axis Solar TrackerMaterial：Galvanized carbon steel / zinc aluminum magnesium / pre-galvanizedread more
Drive mode：Multi-turn drive / push rod
Foundation Type：PHC Pipe String / Hammered Pile / Cast-in... -
![Distributed Roof Support System]()
Distributed Roof Support SystemA distributed roof supporting system is a support structure for installingread more
solar photovoltaic panels, which are fixed directly to the roof of a building.
The advantage of such a... -
![Photovoltaic Flexible Bracket]()
Photovoltaic Flexible BracketPhotovoltaic Flexible Bracket is a new type of solar photovoltaicread more
panel support system, which has the following advantages:
1.High flexibility
2.Installation advantages... -
![Steel Components Of Wind Power Towers]()
Steel Components Of Wind Power TowersWind towers are a key support structure for wind turbines,read more
lifting wind turbines high into the air to capture more wind energy.
The stability and strength of the tower directly... -
![Photovoltaic Bracket Accessories]()
Photovoltaic Bracket AccessoriesPhotovoltaic Bracket Accessories produced by our company include:read more
Clamp
Hot dip galvanized solder free base
Aluminum alloy fixture
Aluminum alloy bracket ... -
![Photovoltaic Bracket CZU Steel]()
Photovoltaic Bracket CZU SteelPhotovoltaic Bracket CZU Steel is a steel structure material used inread more
solar photovoltaic system,
which is manufactured by cold bending process,
Photovoltaic Bracket CZU Steel... -
![BIPV Waterproofing System]()
BIPV Waterproofing SystemIn terms of waterproofing, BIPV Waterproofing System adopts structuralread more
waterproofing, and a longitudinal main beam,
longitudinal cover plate and transverse sink are set up,
... -
![Photovoltaic Shed]()
Photovoltaic ShedPhotovoltaic Shed is an innovative design that combines solar photovoltaicread more
power generation technology with the building structure, which not only
provides parking space, but also...
Why Choose Us
Our Factory
HSDC is the only designated distributor of China Iron and Steel Research Group, Who has Li Heng photovoltaic factory, Kaisheng pipe factory, Jingyong slitting processing plant, etc.
Rich Experience
With over 13 years of experience in the steel pipe industry, our core team has extensive expertise in meeting the sourcing requirements of major international companies for anti-corrosion coatings and steel pipes.
Our Certifications
Our products have passed ISO 9001, API 5L, API 5CT, API 5DP, API Q1, GOST, ABS, BV, DNV-GL, CCS, PED, CPR, CE certifications.
Our Service
From understanding customer needs in detail before the sale, to developing a reasonable plan during the sale, to tracking customer satisfaction after the sale, our team can provide a full range of services for your custom steel pipe and project needs.
Photovoltaic Bracket - Overview
A photovoltaic (PV) bracket, also known as a solar panel bracket or solar mounting system, is a structural component that securely fixes solar panels to a surface like a roof or the ground, providing stability and the optimal angle for sunlight absorption. These brackets are essential for the safe and efficient operation of any solar power generation system, protecting the panels from environmental factors and ensuring they are positioned correctly to maximize energy production.
Product Specification
We offers the following product specifications
|
Product Name |
Flat Single Axis Solar Tracker |
|
Installed capacity of the system |
2*60 |
|
Working environment temperature |
-30 ° C - 70 ° C (customizable ) |
|
Tracking range |
Plus or minus 45 °/ 60 ° (customisable ) |
|
Control mode |
Astronomical Time Control + AI Algorithm |
|
land use efficiency(GCR) |
25%-50% |
|
Tracking accuracy |
±2° |
|
Material |
Galvanized carbon steel / zinc aluminum magnesium / pre-galvanized |
|
Drive mode |
Multi-turn drive / push rod |
|
Foundation Type |
PHC Pipe String / Hammered Pile / Cast-in Pile |
|
Maximum working wind speed |
18m/s |
|
Component type |
Compatible with all border components |
|
Maximum safe wind speed |
45m / s (customizable ) |
|
Level of protection |
Ip65 |
|
Service life |
25 years |
Types of Photovoltaic Bracket
Fixed photovoltaic bracket
This refers to the mounting system where the orientation, angle, etc. remain unchanged after installation. The fixed mounting method directly places the solar photovoltaic modules toward the low latitude area, at a certain angle to the ground, to form a solar photovoltaic array in series and parallel, so as to achieve the purpose of solar photovoltaic power generation. There are various fixing methods, such as ground fixing methods are pile method (direct burial method), concrete block counterweight method, pre-buried method, ground anchor method, etc. Roofing fixing methods have different programs with different roofing materials.
Adjustable tracking bracket
Tracking system is to try to align the sun so that the sun rays receive more sun rays per unit area of the battery panel, thus increasing the power generation. Currently, tracking systems include single-axis tracking systems and dual-axis tracking systems, and single-axis tracking systems are divided into horizontal single-axis tracking systems and oblique single-axis tracking systems.
Flexible Racking
PV flexible racking is a kind of large-span PV module support structure fixed at both ends and formed by pre-stressed flexible cable structure. The span of the cable structure is usually between 20 and 40 meters, up to 100 meters. At the same time, the modules can be 2 meters to 30 meters above the ground, which has the advantages of high headroom under the modules and low number of piles for arrangement. The installation angle of PV modules in flexible mounts is generally small, usually 10°-15°.
Advantages of Photovoltaic Bracket
Improve power generation efficiency: Photovoltaic brackets adjust the height and angle of photovoltaic modules to maximize the reception of sunlight, thereby improving power generation efficiency. For example, tracking brackets can automatically adjust the angle according to the position of the sun to further increase power generation.
Protect photovoltaic modules: Photovoltaic brackets can firmly support photovoltaic modules to prevent them from being damaged by external factors such as wind, rain, sand and dust, thereby extending the service life of the photovoltaic system.
Strong adaptability: Photovoltaic brackets can be customized according to different terrain and climatic conditions to adapt to various installation environments. For example, flexible photovoltaic brackets can perform well in complex terrains such as mountains and barren slopes.
High economy: After using photovoltaic brackets, the power generation efficiency of photovoltaic systems is improved, and the speed of electricity bill recovery is accelerated, helping enterprises reduce costs and improve benefits.
Strong reliability: Photovoltaic brackets are scientifically designed to withstand the test of severe weather and natural disasters to ensure the stable operation of the system.
Easy maintenance: The installation and maintenance process of photovoltaic brackets is relatively simple, which reduces operation and maintenance costs. For example, fixed photovoltaic brackets have no moving parts, reducing potential failure points.
Strong durability: Photovoltaic brackets are usually made of corrosion-resistant and weathering-resistant materials to ensure long-term stable power generation needs.
Material of Photovoltaic Bracket
Carbon Steel
Carbon steel brackets offer high strength and large load-bearing capacity, with relatively low prices. However, steel is prone to rusting and requires anti-corrosion treatment, which increases the maintenance costs in the long term. The cost of anti-corrosion treatment for steel brackets accounts for about 10% to 15% of the total cost, and regular maintenance and inspection are required.
Aluminum Alloy
Aluminum alloy brackets are lightweight, corrosion-resistant, and aesthetically pleasing, with low maintenance costs. However, the price of aluminum alloy is relatively higher, making it suitable for projects with higher requirements for weight and appearance. Aluminum alloy brackets have a long service life and generally do not require special maintenance, only periodic cleaning.
Stainless Steel
Stainless steel offers excellent corrosion resistance and aesthetics, making it suitable for harsh environmental conditions. However, stainless steel is more expensive and has greater processing difficulty. The maintenance costs for stainless steel brackets are low, but due to their higher price, the initial investment cost is relatively high.
Installation Precautions
01/
Choose the right material
Photovoltaic brackets should be corrosion resistant, anti-aging, high-strength materials, such as aluminum alloy, stainless steel, etc. At the same time, taking into account environmental requirements, recyclable materials can also be used.
02/
The structure is stable
The design of the photovoltaic bracket should take into account the terrain, climate, soil and other factors to ensure stability and safety after installation. The construction of the photovoltaic bracket needs to ensure the stability of the structure to prevent the impact of bad weather such as strong winds and heavy rain on the bracket and solar panels.
03/
Waterproof measures
In order to avoid rain damage to photovoltaic brackets and solar panels, appropriate waterproof measures should be taken. For example, a waterproof rubber pad can be placed between the support and the ground to prevent moisture penetration.
04/
Follow safety regulations
The installation and maintenance process of the photovoltaic bracket should follow the relevant safety specifications to ensure the personal safety of the staff.
Customization Process
Requirement Discussion
Contact us and provide your design drawings, size specifications, and other technical parameters.
01
Design Proposal
Our professional team will develop a design proposal and provide a quotation based on your requirements.
02
Sample Production
We produce samples according to the design proposal and conduct rigorous testing.
03
Mass Production
Upon your approval, we commence mass production to ensure timely delivery and consistent quality.
04
After-Sales Service
We offer ongoing technical support and service to ensure the long-term stable operation of our products.
05
Package & Delivery
Package
Standard export package
Delivery
By air express, by sea
As one of the most professional photovoltaic bracket manufacturers and suppliers in China, we're featured by quality products and low price. Please rest assured to buy high-grade photovoltaic bracket in stock here from our factory.
