Product Description

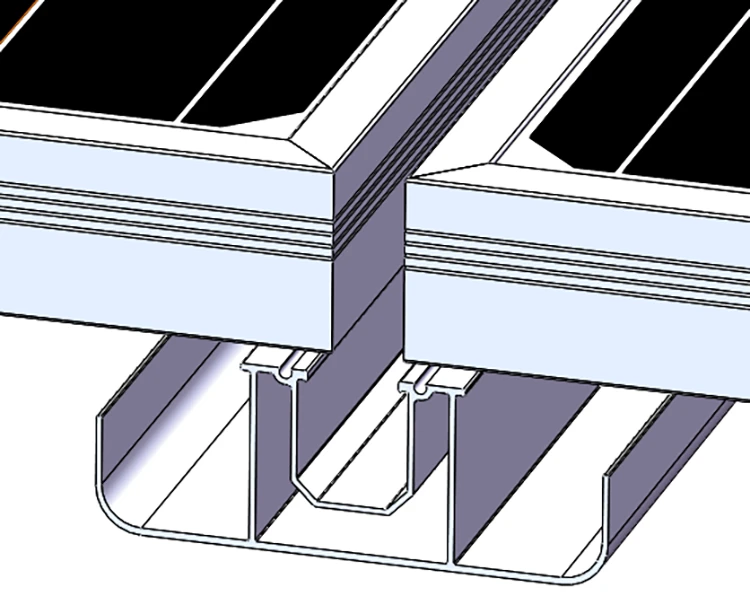

In terms of waterproofing, BIPV Waterproofing System adopts structural waterproofing, and a longitudinal main beam, longitudinal cover plate and transverse sink are set up, which can introduce rainwater into the rainwater gutter and be organized.
The drainage does not require secondary waterproofing of the roof. Comprise component bending piece, and the upper and lower connecting plates on the bending part are connected with the connecting block with mounting screws respectively.
After the connection is completed, the assembly bracket is installed on the roof with fixing bolts; The bending piece can freely change the angle according to the inclination angle of the roof to adapt to the roof with different inclination angles; And on rainy days, the side outlet can drain most of the accumulated water on the bottom plate, which is also an important working principle of BIPV Waterproofing System waterproofing.
However, it is inevitable that water will seep in, and the water seeping down will collect on the outer wall of the bottom plate, flow through the vertical outlet to the drainage board, and then through the drain. The outlet groove opened in the outer wall of the water plate is discharged to the outside.
