Products Description

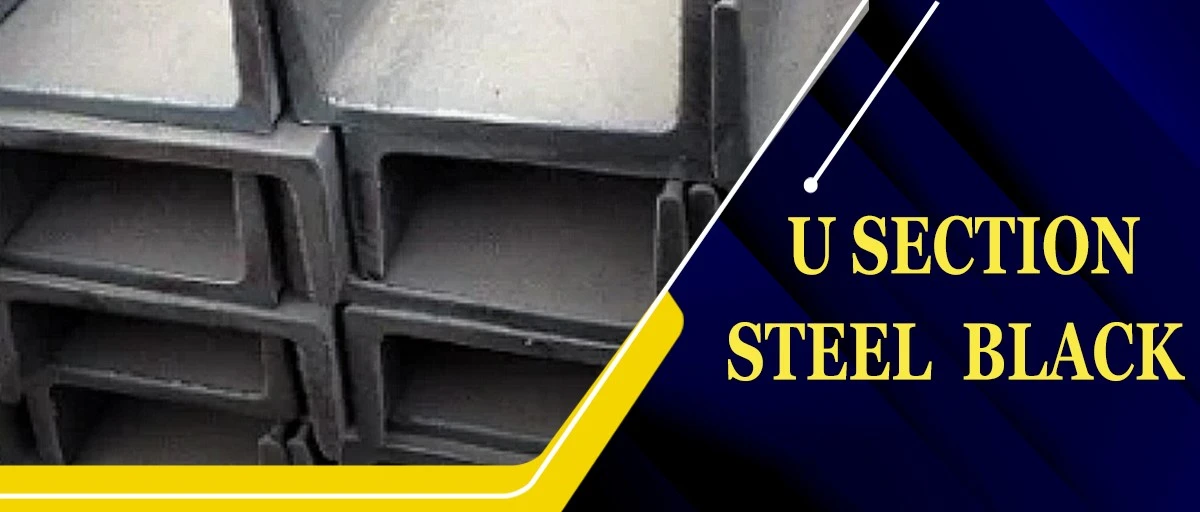

U Section Steel black is supplied in lengths up to 6 meters long,U Section Steel blackl can be cut easily, U Section Steel black can be drilled easily and U Section Steel black can be machined easily. U Section Steel black is particularly suited to all methods of welding. Mild Steel Channel is produced to grade EN 10025-2 S275JR one of the most widely used steel specifications for general construction.
Standard and grade
|
Products: |
U Section Steel black |
|
Length |
6m, 12m, Large quantities can be customized |
|
Grade: |
Q235B,Q345B |
|
Specification Standard |
GB standard(10#-40#,100*48mm--400*102mm) |
|
|
JIS standard(50*25mm--250*90mm) |
|
Steel Grade |
ASTM a 484 A36 A106 Q235 Q275 Q345 |
|
Technique |
Hot Rolled ,Cold Rolled, Welding Cold Bending |
|
Application |
Mainly used for building structure, vehicle manufacturing, and other industrial structure, channel steel is often used with I beam. |
|
Surface Treatment |
Galvanized, Coated or Custom |
|
Dellivery |
Within 7-15 Days |
|
Transport Package |
Standard Seaworthy Package |
|
HS Code |
72169900 |
|
Production Capacity |
20000tons/Month |
Product parameters
| Nominat Size(mm) |
Depthof Section (mm) |
Flange Width (mm) |
Flange Thickness (mm) |
Web Depth (mm) |
Web Thickness (mm) |
Weight (kg/m) |
Metres/ Tonne (m/t) |
9m | 10.5m | 12m | 13.5m | 15m | 16.5m | 18m |
| 100x50 | 100 | 50 | 6.70 | 87 | 4.20 | 8.33 | 120 | √ | √ | |||||
| 125×65 | 125 | 65 | 7.50 | 110 | 4.70 | 11.90 | 84 | |||||||
| 150×75 | 150 | 75 | 9.50 | 131 | 6.00 | 17.70 | 57 | √ | √ | √ | √ | |||
| 180x75 | 180 | 75 | 11.00 | 158 | 6.00 | 20.90 | 48 | √ | √ | √ | √ | |||
| 200x75 | 200 | 75 | 12.00 | 176 | 6.00 | 22.90 | 44 | √ | √ | √ | √ | |||
| 230x75 | 230 | 75 | 12.00 | 206 | 6.50 | 25.10 | 40 | √ | √ | √ | √ | √ | ||
| 250×90 | 250 | 90 | 15.00 | 220 | 8.00 | 35.50 | 28 | √ | √ | √ | ||||
| 300x90 | 300 | 90 | 16.00 | 268 | 8.00 | 40.10 | 25 | √ | √ | √ | √ | √ | ||
| 380x100 | 380 | 100 | 17.50 | 345 | 10.00 | 55.20 | 18 | √ | √ | √ | √ | √ | √ | √ |
| 50×25 | 50 | 25 | 3.83 | 261 | √ |
classification
Mainly used for building structure, vehicle manufacturing, and other industrial structure, U channel steel is often used with i beam.Section steel is a kind of strip steel with certain section shape and size. According to the section shape, the section steel is divided into simple section steel and complex section steel .The former refers to Square steel, Round steel, Flat steel, Angle steel, Hexagonal steel, etc; The latter refers to I-beam, Channel steel, Rail steel, Window frame steel, Bending section steel, etc.
application
U Section Steel black Application：
1.U Section Steel black slots are available: Steel structure bearing support; Ships, machinery manufacturing frame structure;
Port conveyor belt, high-speed board support;buildings; tower; lifting equipment;
beams and stubs etc.
2.U Section Steel black slots are available: Construction and machine structure pipe, building material tube,
agriculture equipment, water and gas pipe, etc.
3.U Section Steel black slots are available: Glass Railing, Wall Decoration, Construction Supporting
Why tianjin huirun
Our company cooperates with major steel mills and has advanced production lines for sheet and pipe materials, complete testing equipment, and a strict quality assurance system.
We specializes in various kinds of steel concerned building materials. Such as Galvanized round pipe, square/rectangular/Irregular pipe, Scaffold pipe, various steel coils/stripe/plate, PC wire, PC strands, rebar, photovoltaic bracket, Angle steel, U/H/C-shaped steel and so on.
Especially our patented products-Rare Earth Weather & Corrosion Resistant Steel, it is a green, environmentally friendly, and corrosion-resistant new type of steel that can replace traditional galvanizing and rust prevention processes.
